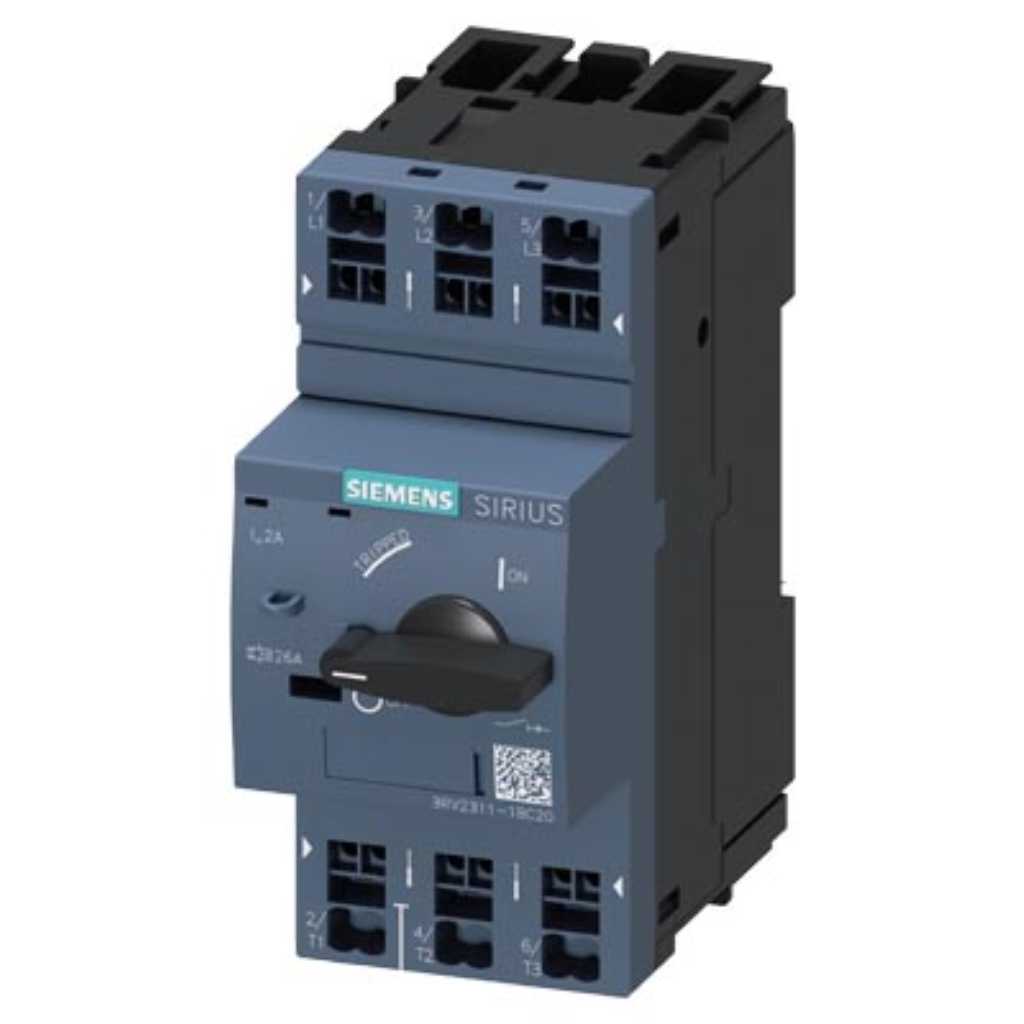

Disyuntor arranque, S00, Ir=2A, resorte
Siemens

Disyuntor arranque, S00, Ir=2A, resorte

Interruptor automático tamaño S00 para combinación de arrancadores Intensidad asignada 2 A Disparador de cortocircuito 26 A borne de resorte poder de corte estándar

Protección y seguridad
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryYes
safety device type according to IEC 61508-2Type A
Datos eléctricos
product extension auxiliary switchYes
Conexión y cableado
size of contactor can be combined company-specificS00, S0
of the terminalIP20
for AWG cables for main contacts2x (20 ... 12)
AWG number as coded connectable conductor cross20 ... 12
Condiciones ambientales
installation altitude at height above sea level maximum2 000 m
Prestaciones y durabilidad
B10 value with high demand rate according to SN 319205 000
Otras características
product brand nameSIRIUS
design of the productFor starter combinations
product type designation3RV2
size of the circuit-breakerS00
product function disconnector functionalityYes
at AC in hot operating state7.25 W
at AC in hot operating state per pole2.4 W
type of calculation of power loss current-dependentquadratic
surge voltage resistance rated value6 kV
in networks with ungrounded star point between main and400 V
in networks with grounded star point between main and400 V
on the front according to IEC 60529IP20
on the frontIP20
shock resistance according to IEC 60068-2-2725g / 11 ms
of the main contacts typical100 000
of auxiliary contacts typical100 000
electrical endurance (operating cycles) typical100 000
continuous current rated value2A
Net Weight0.363 g
during operation-20 ... +60 °C
during storage-50 ... +80 °C
during transport-50 ... +80 °C
relative humidity during operation10 ... 95 %
number of poles for main current circuit3
type of voltage for main current circuitAC
rated value690 V
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
operating frequency rated value50 ... 60 Hz
operational current rated value2A
at AC-3 at 400 V rated value2A
at AC-3e at 400 V rated value2A
at 230 V rated value0.4 kW
at 400 V rated value0.8 kW
at 500 V rated value0.8 kW
at 690 V rated value1.1 kW
at AC-3 maximum15 1/h
at AC-3e maximum15 1/h
type of voltage for auxiliary and control circuitAC/DC
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
at AC at 240 V rated value100 kA
at AC at 400 V rated value100 kA
at AC at 500 V rated value100 kA
at AC at 690 V rated value10 kA
at 240 V rated value100 kA
at 480 V rated value2A
at 600 V rated value2A
at 460/480 V rated value1 hp
at 575/600 V rated value1 hp
UL File Number (CCN)E47705 (NLRV, NLRV7)
product function short circuit protectionYes
design of the short-circuit tripmagnetic
at 400 VgL/gG 25 A
at 500 VgL/gG 25 A
at 690 VgL/gG 20 A
mounting positionany
Mounting method of circuit breaker for TransformerYes
height106 mm
width45 mm
depth97 mm
forwards0 mm
backwards0 mm
upwards50 mm
downwards50 mm
at the side0 mm
for main current circuitspring-loaded terminals
arrangement of electrical connectors for main currentTop and bottom
solid or stranded2x (0,5 ... 4 mm²)
finely stranded with core end processing2x (0.5 ... 2.5 mm²)
finely stranded without core end processing2x (0.5 ... 2.5 mm²)
design of screwdriver shaftDiameter 3 mm
size of the screwdriver tip3,0 x 0,5 mm
product function suitable for safety functionYes
safety-related switching OFFYes
service life maximum10 a
test wear-related service life necessaryYes
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192050 %
failure rate [FIT] with low demand rate according to SN50 FIT
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
display version for switching statusHandle
ateates/Test Report
otherRailway
1/L13/L2
last modified:5/5/2026
