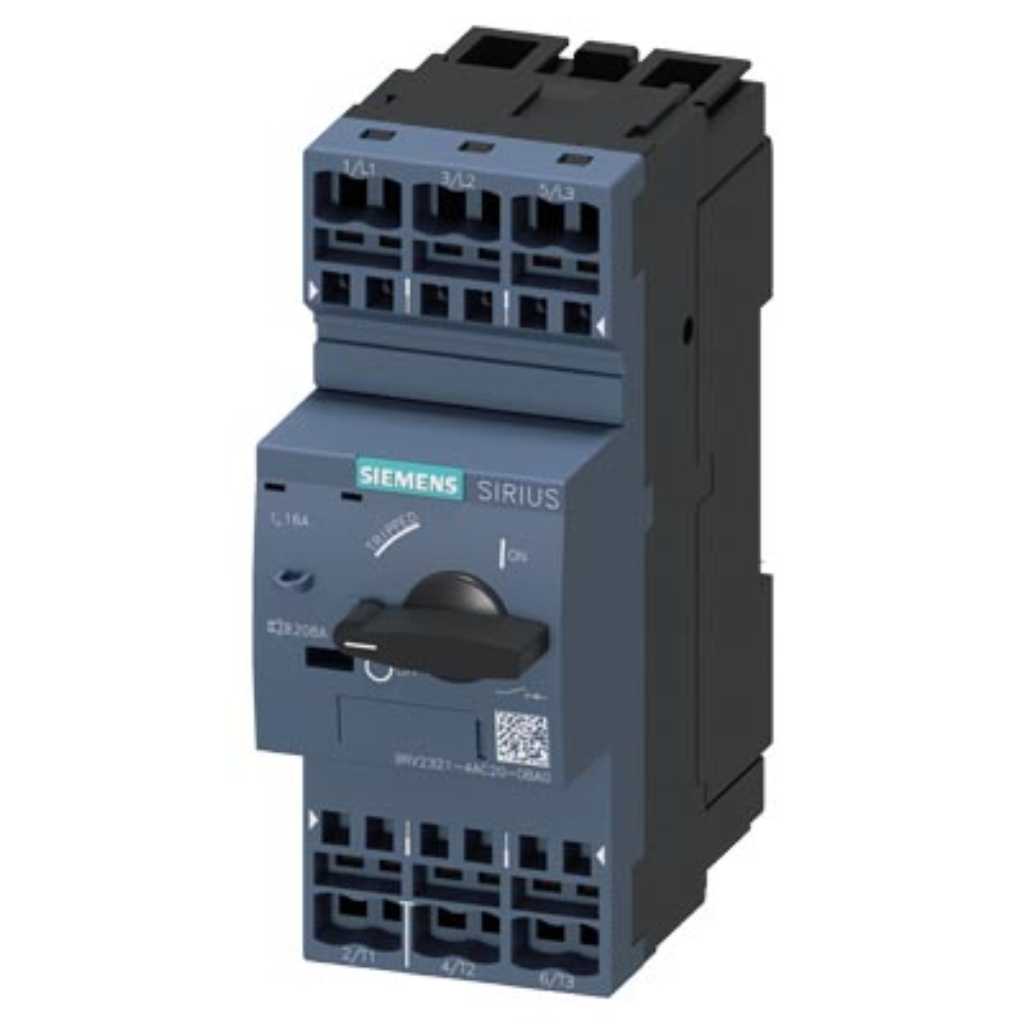

Disyuntor arranque, S0, Ir=16A, resorte
Siemens

Disyuntor arranque, S0, Ir=16A, resorte

Interruptor automático tamaño S0 para combinación de arrancadores Intensidad asignada 16 A Disparador de cortocircuito 208 A borne de resorte poder de corte estándar

Datos eléctricos
product extension auxiliary switchYes
Conexión y cableado
size of contactor can be combined company-specificS00, S0
of the terminalIP20
Condiciones ambientales
installation altitude at height above sea level maximum2 000 m
Otras características
product brand nameSIRIUS
design of the productFor starter combinations
product type designation3RV2
size of the circuit-breakerS0
product function disconnector functionalityYes
at AC in hot operating state9.25 W
at AC in hot operating state per pole3.1 W
type of calculation of power loss current-dependentquadratic
surge voltage resistance rated value6 kV
in networks with ungrounded star point between main and400 V
in networks with grounded star point between main and400 V
on the front according to IEC 60529IP20
on the frontIP20
shock resistance according to IEC 60068-2-2725g / 11 ms
of the main contacts typical500
of auxiliary contacts typical500
electrical endurance (operating cycles) typical500
continuous current rated value16 A
Net Weight0.412 kg
during operation-50 ... +60 °C
during storage-50 ... +80 °C
during transport-50 ... +80 °C
relative humidity during operation10 ... 95 %
number of poles for main current circuit3
type of voltage for main current circuitAC
rated value690 V
at AC-3 rated value maximum690 V
operating frequency rated value50 ... 60 Hz
operational current rated value16 A
at AC-3 at 400 V rated value16 A
at 230 V rated value4 kW
at 400 V rated value7.5 kW
at 500 V rated value7.5 kW
at 690 V rated value11 kW
at AC-3 maximum15 1/h
type of voltage for auxiliary and control circuitAC/DC
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts0
number of CO contacts for auxiliary contacts0
at AC at 240 V rated value100 kA
at AC at 400 V rated value55 kA
at AC at 500 V rated value10 kA
at AC at 690 V rated value4 kA
at 240 V rated value100 kA
product function short circuit protectionYes
design of the short-circuit tripmagnetic
at 400 VgG 63 A
at 500 VgG 50 A
at 690 VgG 40 A
mounting positionany
Mounting method of circuit breaker for TransformerYes
height119 mm
width45 mm
depth97 mm
forwards0 mm
backwards0 mm
upwards50 mm
downwards50 mm
at the side0 mm
for main current circuitspring-loaded terminals
arrangement of electrical connectors for main currentTop and bottom
solid or stranded2x (1 ... 10 mm²)
finely stranded with core end processing2x (1 ... 6 mm²)
finely stranded without core end processing2x (1 ... 6 mm²)
design of screwdriver shaftDiameter 3 mm
size of the screwdriver tip3,0 x 0,5 mm
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front
display version for switching statusHandle
ateates/Test Report
otherRailway
1/L13/L2
last modified:5/5/2026
