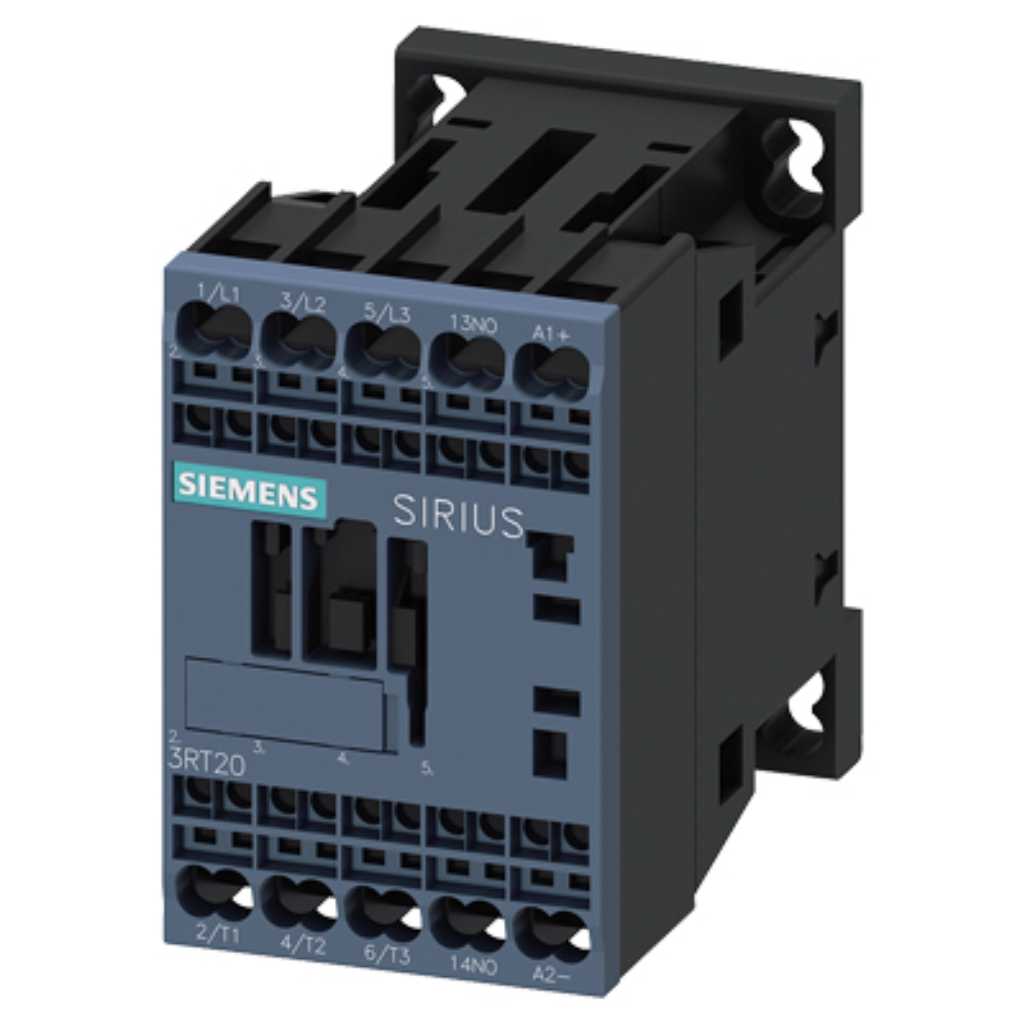

Contactor para ferrocarriles, AC-3e/AC-3, 16 A, 7,5 kW/400 V, 3 polos, 72-125 V DC, 0,7-1,25* Uc,...

Name: Contactor para ferrocarriles, AC-3e/AC-3, 16 A, 7,5 kW/400 V, 3 polos, 72-125 V DC, 0,7-1,25* Uc,...
Brand: Siemens S.A
SKU: 3RT2018-2XF41-0LA2
Price: 89.14 EUR
Availability: InStock

DescripciónEspecificacionesDescargasStock

Contactor para ferrocarriles, AC-3e/AC-3, 16 A, 7,5 kW/400 V, 3 polos, 72-125 V DC, 0,7-1,25* Uc, accionamiento electrónico, con varistor integrado, contactos auxiliares: 1 NA, borne de resorte, tamaño: S00

Protección y seguridad

device type according to ISO 13849-1	3
overdimensioning according to ISO 13849-2 necessary	Yes
safety device type according to IEC 61508-2	Type A

Conexión y cableado

size of contactor	S00
of contactor typical	30 000 000
of the contactor with added electronically optimized	5 000 000
of the contactor with added auxiliary switch block typical	10 000 000
at contactor for auxiliary contacts	Spring-type terminals
for AWG cables for main contacts	2x (20 ... 12)
for AWG cables for auxiliary contacts	2x (20 ... 12)
AWG number as coded connectable conductor cross	20 ... 12

Condiciones ambientales

installation altitude at height above sea level maximum	2 000 m
at AC-1 at 400 V at ambient temperature 40 °C rated	22 A
up to 690 V at ambient temperature 40 °C rated	22 A
up to 690 V at ambient temperature 60 °C rated	20 A

Prestaciones y durabilidad

B10 value with high demand rate according to SN 31920	1 000 000

Otras características

product brand name	SIRIUS
design of the product	With extended operating range
product type designation	3RT2
auxiliary switch	Yes
at AC in hot operating state	6.6 W
at AC in hot operating state per pole	2.2 W
without load current share typical	0.75 W
type of calculation of power loss current-dependent	quadratic
of main circuit with degree of pollution 3 rated value	690 V
of main circuit rated value	6 kV
of auxiliary circuit rated value	6 kV
at DC	6,7 g / 5 ms, 4,2 g / 10 ms
Net Weight	0.3 kg
during operation	-40 ... +70 °C
during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30	95 %
number of poles for main current circuit	3
number of NO contacts for main contacts	3
number of NC contacts for main contacts	0
at AC-3 rated value maximum	690 V
at AC-3e rated value maximum	690 V
at AC-2 at 400 V rated value	16 A
at 400 V rated value	16 A
at 500 V rated value	12.4 A
at 690 V rated value	8.9 A
at AC-4 at 400 V rated value	11.5 A
at maximum AC-1 rated value	4 mm²
at maximum Ith rated value	4 mm²
at 24 V rated value	20 A
at 110 V rated value	2.1 A
at 220 V rated value	0.8 A
at 440 V rated value	0.6 A
at 600 V rated value	0.6 A
at 230 V rated value	4 kW
limited to 1 s switching at zero current maximum	300 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum	169 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum	128 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum	92 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum	74 A; Use minimum cross-section acc. to AC-1 rated value
at AC-2 at AC-3e maximum	750 1/h
at AC-4 maximum	250 1/h
up to 40 °C according to IEC 60077 rated value	22 A
up to 70 °C according to IEC 60077 rated value	18 A
type of voltage	DC
type of voltage of the control supply voltage	DC
control supply voltage at DC rated value	72 ... 125 V
initial value	0.7
full-scale value	1.25
design of the surge suppressor	with varistor
inrush current peak	1.1 A
duration of inrush current peak	50 µs
pickup current mean value	0.04 A
pickup current peak	0.04 A
duration of pickup current	250 ms
holding current mean value	7 mA
closing power of magnet coil at DC	4.5 W
holding power of magnet coil at DC	0.75 W
arcing time	10 ... 15 ms
control version of the switch operating mechanism	Standard A1 - A2
number of NO contacts for auxiliary contacts	1
instantaneous contact	1
operational current at AC-12 maximum	10 A
at 48 V rated value	6A
at 60 V rated value	6A
at 125 V rated value	2A
at 480 V rated value	14 A
at 110/120 V rated value	1 hp
at 200/208 V rated value	3 hp
at 220/230 V rated value	5 hp
at 460/480 V rated value	10 hp
at 575/600 V rated value	10 hp
contact rating of auxiliary contacts according to UL	A600 / Q600
fastening method side-by-side mounting	Yes
height	70 mm
width	45 mm
depth	73 mm
forwards	10 mm
upwards	10 mm
downwards	10 mm
at the side	0 mm
for main current circuit	spring-loaded terminals
for auxiliary and control circuit	spring-loaded terminals
of magnet coil	Spring-type terminals
solid	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
solid or stranded	2x (0,5 ... 4 mm²)
finely stranded with core end processing	2x (0.5 ... 2.5 mm²)
finely stranded without core end processing	2x (0.5 ... 2.5 mm²)
mirror contact according to IEC 60947-4-1	Yes
suitable for safety function	Yes
suitability for use safety-related switching OFF	Yes
service life maximum	20 a
test wear-related service life necessary	Yes
with low demand rate according to SN 31920	40 %
with high demand rate according to SN 31920	73 %
failure rate [FIT] with low demand rate according to SN	100 FIT
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
ates/Test Report	ate
other	Railway
ate	ates/Test Report
A1 (+)	1/L1
3/L2	5/L3
last modified:	4/4/2026
