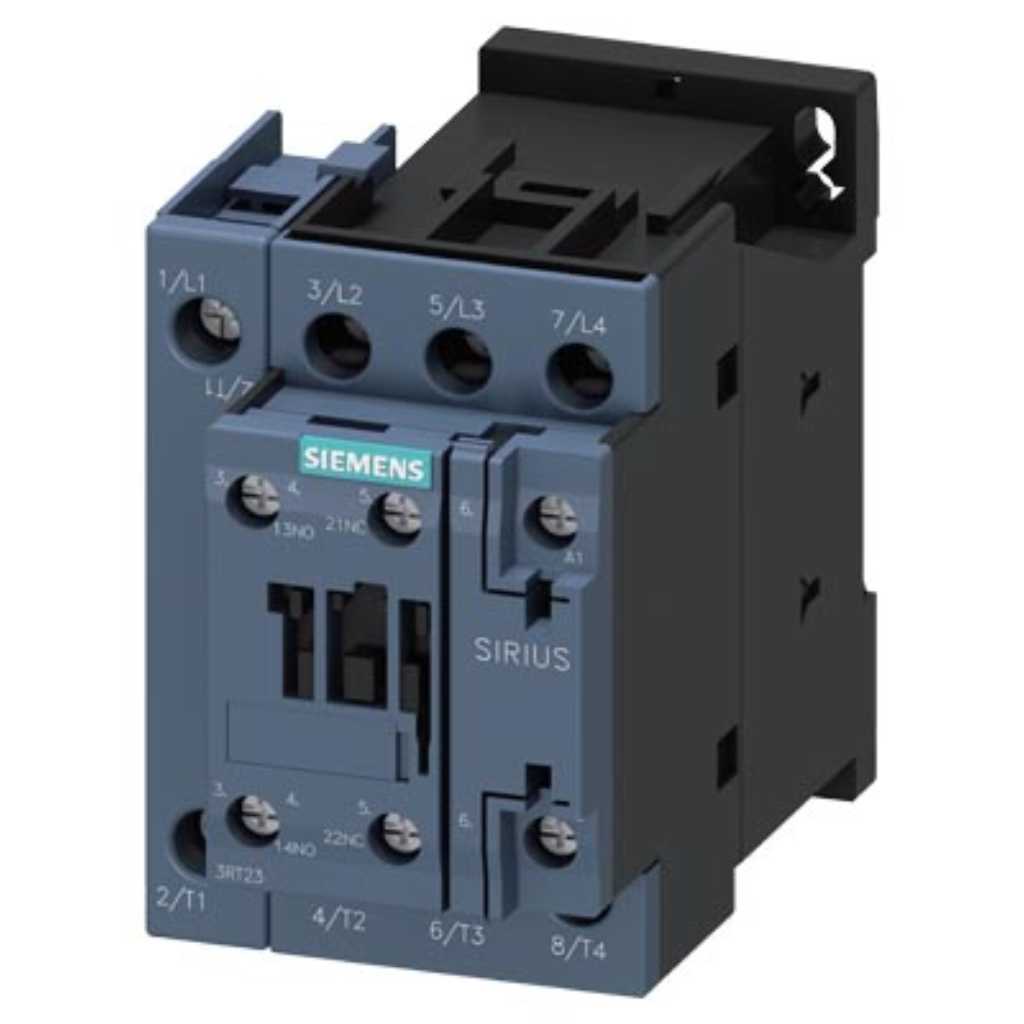

Contactor AC-1, 35 A, 400 V / 40 °c, de 4 polos, 100 V AC, 50 Hz / 100-110 V, 60 Hz, contactos au...

Name: Contactor AC-1, 35 A, 400 V / 40 °c, de 4 polos, 100 V AC, 50 Hz / 100-110 V, 60 Hz, contactos au...
Brand: Siemens S.A
SKU: 3RT2325-1AG60
Price: 62.69 EUR
Availability: InStock

DescripciónEspecificacionesDescargasGarantías

Contactor AC-1, 35 A, 400 V / 40 °c, de 4 polos, 100 V AC, 50 Hz / 100-110 V, 60 Hz, contactos auxiliares: 1 NA + 1 NC, borne de tornillo, tamaño: S0

Conexión y cableado

size of contactor	S0
of contactor typical	10 000 000
of the contactor with added auxiliary switch block typical	10 000 000
at contactor for auxiliary contacts	Screw-type terminals
for AWG cables for main contacts	2x (16 ... 12), 2x (14 ... 8)
for AWG cables for auxiliary contacts	2x (20 ... 16), 2x (18 ... 14)
AWG number as coded connectable conductor cross	16 ... 8

Condiciones ambientales

installation altitude at height above sea level maximum	2 000 m
at AC-1 at 400 V at ambient temperature 40 °C rated	35 A
up to 690 V at ambient temperature 40 °C rated	35 A
up to 690 V at ambient temperature 60 °C rated	30 A

Otras características

product brand name	SIRIUS
product type designation	3RT23
auxiliary switch	Yes
at AC in hot operating state	7.6 W
at AC in hot operating state per pole	1.9 W
without load current share typical	2W
type of calculation of power loss current-dependent	quadratic
of main circuit with degree of pollution 3 rated value	690 V
of main circuit rated value	6 kV
of auxiliary circuit rated value	6 kV
at AC	7,5 g / 5 ms, 4,7 g / 10 ms
Net Weight	0.473 g
during operation	-25 ... +60 °C
during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30	95 %
number of poles for main current circuit	4
number of NO contacts for main contacts	4
type of voltage for main current circuit	AC
at 400 V rated value	15.5 A
at AC-4 at 400 V rated value	15.5 A
at 24 V rated value	30 A
at 60 V rated value	20 A
at 110 V rated value	4.5 A
at 220 V rated value	1A
at 440 V rated value	0.4 A
at AC-3 at 400 V rated value	7.5 kW
at AC-1 maximum	1 000 1/h
type of voltage	AC
type of voltage of the control supply voltage	AC
at 50 Hz rated value	100 V
at 60 Hz rated value	110 V
at 50 Hz	0.8 ... 1.1
at 60 Hz	0.85 ... 1.1
arcing time	10 ms
control version of the switch operating mechanism	Standard A1 - A2
number of NC contacts for auxiliary contacts	1
attachable	2
instantaneous contact	1
number of NO contacts for auxiliary contacts	1
operational current at AC-12 maximum	10 A
at 230 V rated value	10 A
at 500 V rated value	2A
at 690 V rated value	1A
at 48 V rated value	6A
at 125 V rated value	2A
at 600 V rated value	0.15 A
contact reliability of auxiliary contacts	1 faulty switching per 100 million (17 V, 1 mA)
contact rating of auxiliary contacts according to UL	A600 / Q600
UL File Number (CCN)	E31519 (NLDX, NLDX7)
with type of coordination 1 required	gG: 63 A (690 V, 100 kA)
with type of coordination 2 required	gG: 20 A (690 V, 100 kA)
fastening method side-by-side mounting	Yes
height	85 mm
width	60 mm
depth	97 mm
forwards	10 mm
upwards	10 mm
downwards	10 mm
at the side	0 mm
for main current circuit	screw-type terminals
for auxiliary and control circuit	screw-type terminals
of magnet coil	Screw-type terminals
solid	2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
solid or stranded	2x (1 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
finely stranded with core end processing	2x (1 ... 2.5 mm²), 2x (2.5 ... 6 mm²), 1x 10 mm²
stranded	1 ... 10 mm²
mirror contact according to IEC 60947-4-1	Yes
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
ate	ates/Test Report
other	Railway
3/L2	5/L3
7/L4	13
6/T3	8/T4
last modified:	4/4/2026

⬇ Descargar datasheet (PDF)

Ficha técnica oficial del fabricante con todas las especificaciones.
