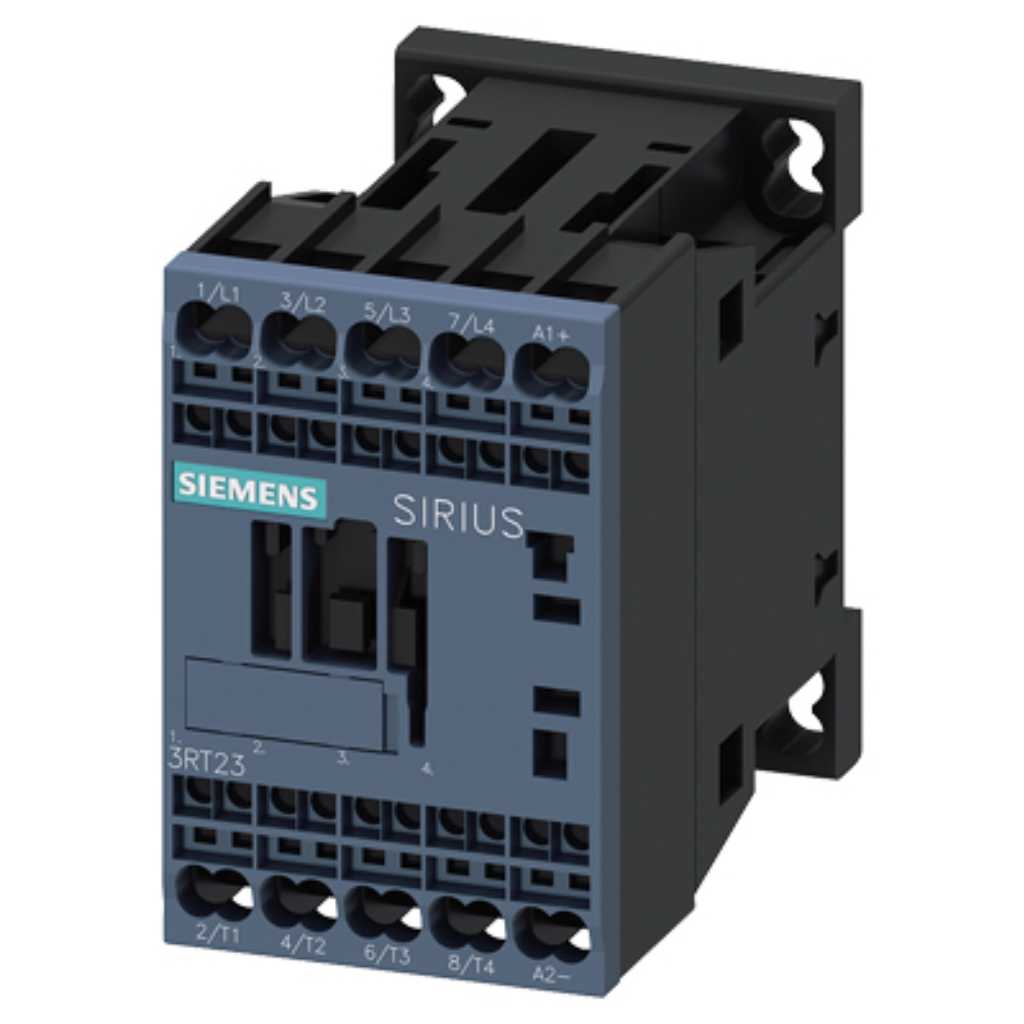

Contactor AC-1, 22A, 24V DC, tam. S00, resorte

Name: Contactor AC-1, 22A, 24V DC, tam. S00, resorte
Brand: Siemens S.A
SKU: 3RT2317-2BB40
Price: 46.56 EUR
Availability: InStock

DescripciónEspecificacionesDescargasGarantías

Contactor AC-1, 22 A, 400 V / 40 °c, de 4 polos, 24 V DC, borne de resorte, tamaño: S00

Conexión y cableado

size of contactor	S00
of contactor typical	30 000 000
of the contactor with added auxiliary switch block typical	10 000 000
at contactor for auxiliary contacts	Spring-type terminals
for AWG cables for main contacts	2x (20 ... 12)
for AWG cables for auxiliary contacts	2x (20 ... 12)
AWG number as coded connectable conductor cross	20 ... 12

Condiciones ambientales

installation altitude at height above sea level maximum	2 000 m
at AC-1 at 400 V at ambient temperature 40 °C rated	22 A
up to 690 V at ambient temperature 40 °C rated	22 A
up to 690 V at ambient temperature 60 °C rated	20 A

Otras características

product brand name	SIRIUS
product type designation	3RT23
auxiliary switch	Yes
at AC in hot operating state	6.4 W
at AC in hot operating state per pole	1.6 W
without load current share typical	4W
type of calculation of power loss current-dependent	quadratic
of main circuit with degree of pollution 3 rated value	690 V
of main circuit rated value	6 kV
of auxiliary circuit rated value	6 kV
at DC	7.3 g / 5 ms, 4.7 g / 10 ms
Net Weight	309 g
during operation	-25 ... +60 °C
during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30	95 %
number of poles for main current circuit	4
number of NO contacts for main contacts	4
type of voltage for main current circuit	AC
at 400 V rated value	12 A
at AC-4 at 400 V rated value	8.5 A
at 24 V rated value	20 A
at 60 V rated value	20 A
at 110 V rated value	2.1 A
at 220 V rated value	0.8 A
at 440 V rated value	0.6 A
at AC-3 at 400 V rated value	5.5 kW
at AC-1 maximum	1 000 1/h
type of voltage	DC
type of voltage of the control supply voltage	DC
control supply voltage at DC rated value	24 V
initial value	0.8
full-scale value	1.1
closing power of magnet coil at DC	4W
holding power of magnet coil at DC	4W
arcing time	10 ... 15 ms
control version of the switch operating mechanism	Standard A1 - A2
attachable	2
with type of coordination 1 required	gG: 35 A (690 V, 100 kA)
with type of coordination 2 required	gG: 20 A (690 V, 100 kA)
fastening method side-by-side mounting	Yes
height	70 mm
width	45 mm
depth	73 mm
forwards	10 mm
upwards	10 mm
downwards	10 mm
at the side	0 mm
for main current circuit	spring-loaded terminals
for auxiliary and control circuit	spring-loaded terminals
of magnet coil	Spring-type terminals
solid	2x (0.5 ... 4 mm²)
solid or stranded	2x (0,5 ... 4 mm²)
finely stranded with core end processing	2x (0.5 ... 2.5 mm²)
finely stranded without core end processing	2x (0.5 ... 2.5 mm²)
stranded	0.5 ... 4 mm²
mirror contact according to IEC 60947-4-1	Yes; with 3RH29
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
ate	ates/Test Report
other	Railway
A1 (+)	1/L1
3/L2	5/L3
A2 (-)	2/T1
4/T2	6/T3
last modified:	4/4/2026
