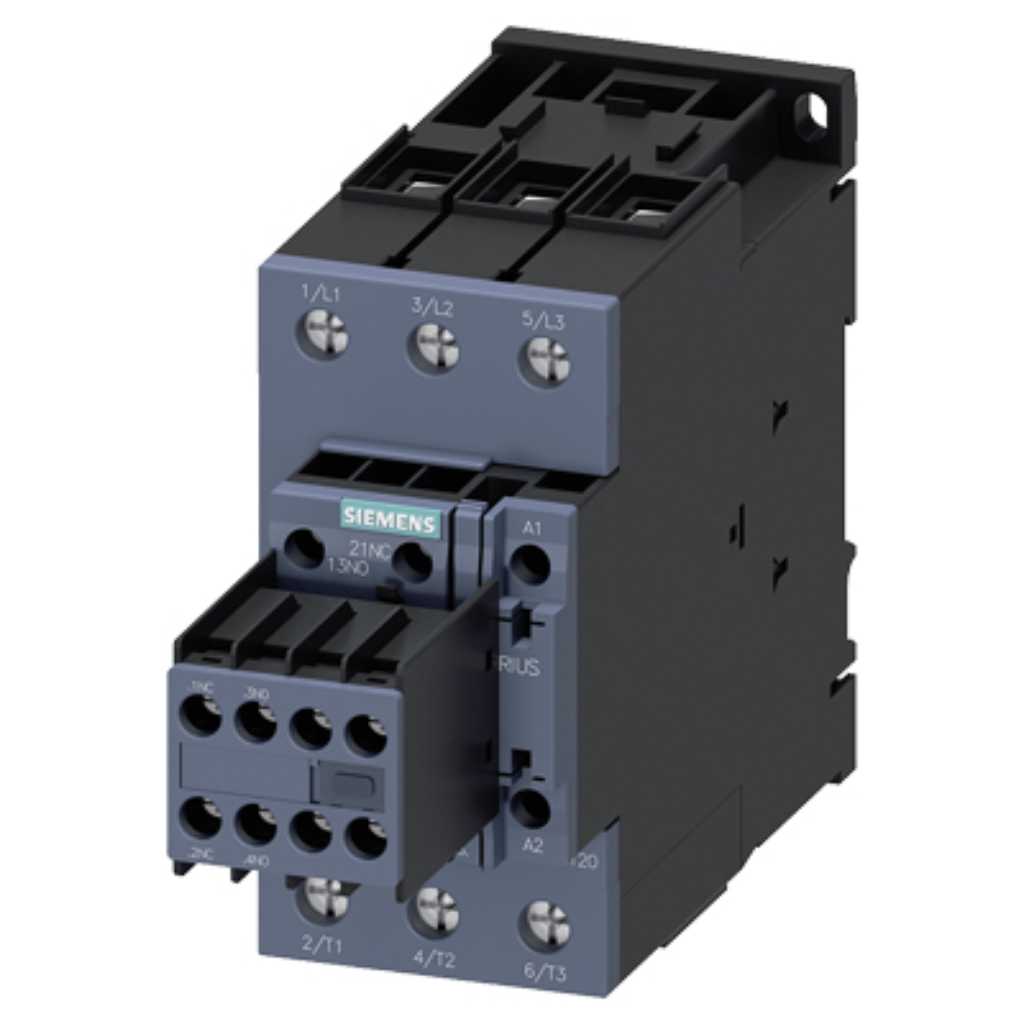

Contactor, 65A, 30kW, 24V AC, tam. S2, tornillo

Name: Contactor, 65A, 30kW, 24V AC, tam. S2, tornillo
Brand: Siemens S.A
SKU: 3RT2037-1AB04
Price: 222.75 EUR
Availability: InStock

DescripciónEspecificacionesDescargasGarantías

Contactor de potencia, AC-3e/AC-3, 65 A, 30 kW/400 V, tripolar, 24 V AC, 50 Hz, contactos auxiliares: 2 NA + 2 NC, borne de tornillo, tamaño: S2, bloque de contactos auxiliares desmontable

Protección y seguridad

device type according to ISO 13849-1	3
overdimensioning according to ISO 13849-2 necessary	Yes
safety device type according to IEC 61508-2	Type A

Conexión y cableado

size of contactor	S2
of contactor typical	10 000 000
of the contactor with added electronically optimized	5 000 000
of the contactor with added auxiliary switch block typical	10 000 000
at contactor for auxiliary contacts	Screw-type terminals
for AWG cables for main contacts	2x (18 ... 2), 1x (18 ... 1)
for AWG cables for auxiliary contacts	2x (20 ... 16), 2x (18 ... 14)
AWG number as coded connectable conductor cross	18 ... 1

Condiciones ambientales

installation altitude at height above sea level maximum	2 000 m
at AC-1 at 400 V at ambient temperature 40 °C rated	80 A
up to 690 V at ambient temperature 40 °C rated	80 A
up to 690 V at ambient temperature 60 °C rated	70 A

Prestaciones y durabilidad

B10 value with high demand rate according to SN 31920	1 000 000

Otras características

product brand name	SIRIUS
product type designation	3RT2
at AC in hot operating state	11.4 W
at AC in hot operating state per pole	3.8 W
without load current share typical	6W
type of calculation of power loss current-dependent	quadratic
of main circuit with degree of pollution 3 rated value	690 V
of main circuit rated value	6 kV
of auxiliary circuit rated value	6 kV
at AC	9.8 g / 5 ms, 6.5 g / 10 ms
Net Weight	1.045 kg
during operation	-25 ... +60 °C
during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30	95 %
number of poles for main current circuit	3
number of NO contacts for main contacts	3
number of NC contacts for main contacts	0
at AC-3 rated value maximum	690 V
at AC-3e rated value maximum	690 V
at 400 V rated value	65 A
at 500 V rated value	65 A
at 690 V rated value	47 A
at AC-4 at 400 V rated value	55 A
at AC-5a up to 690 V rated value	70.4 A
at AC-5b up to 400 V rated value	53.9 A
up to 230 V for current peak value n=20 rated value	56.9 A
up to 400 V for current peak value n=20 rated value	56.9 A
up to 500 V for current peak value n=20 rated value	56.9 A
up to 690 V for current peak value n=20 rated value	47 A
up to 230 V for current peak value n=30 rated value	38 A
up to 400 V for current peak value n=30 rated value	38 A
up to 500 V for current peak value n=30 rated value	38 A
up to 690 V for current peak value n=30 rated value	38 A
at 24 V rated value	55 A
at 60 V rated value	23 A
at 110 V rated value	4.5 A
at 220 V rated value	1A
at 440 V rated value	0.4 A
at 600 V rated value	0.25 A
at AC-2 at 400 V rated value	30 kW
at 230 V rated value	18.5 kW
limited to 1 s switching at zero current maximum	1 055 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum	730 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum	520 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum	336 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum	272 A; Use minimum cross-section acc. to AC-1 rated value
at AC-1 maximum	800 1/h
at AC-2 maximum	400 1/h
at AC-3 maximum	700 1/h
maximum	700 1/h
at AC-4 maximum	200 1/h
type of voltage of the control supply voltage	AC
at 50 Hz rated value	24 V
at 50 Hz	0.8 ... 1.1
arcing time	10 ... 20 ms
control version of the switch operating mechanism	Standard A1 - A2
operational current at AC-12 maximum	10 A
at 48 V rated value	6A
at 125 V rated value	2A
contact reliability of auxiliary contacts	1 faulty switching per 100 million (17 V, 1 mA)
at 480 V rated value	65 A
at 110/120 V rated value	5 hp
at 200/208 V rated value	20 hp
at 220/230 V rated value	20 hp
at 460/480 V rated value	50 hp
at 575/600 V rated value	50 hp
contact rating of auxiliary contacts according to UL	A600 / Q600
fastening method side-by-side mounting	Yes
height	114 mm
width	55 mm
depth	174 mm
forwards	10 mm
upwards	10 mm
downwards	10 mm
at the side	0 mm
for main current circuit	screw-type terminals
for auxiliary and control circuit	screw-type terminals
of magnet coil	Screw-type terminals
solid or stranded	2x (1 ... 35 mm²), 1x (1 ... 50 mm²)
finely stranded with core end processing	2x (1 ... 25 mm²), 1x (1 ... 35 mm²)
mirror contact according to IEC 60947-4-1	Yes
suitable for safety function	Yes
suitability for use safety-related switching OFF	Yes
service life maximum	20 a
test wear-related service life necessary	Yes
with low demand rate according to SN 31920	40 %
with high demand rate according to SN 31920	73 %
failure rate [FIT] with low demand rate according to SN	100 FIT
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
ate	ates/Test Report
Railway	Dangerous goods
3/L2	5/L3
13 NO	21 NC
31 NC	43 NO
14 NO	22 NC
32 NC	44 NO
last modified:	4/4/2026

⬇ Descargar datasheet (PDF)

Ficha técnica oficial del fabricante con todas las especificaciones.
