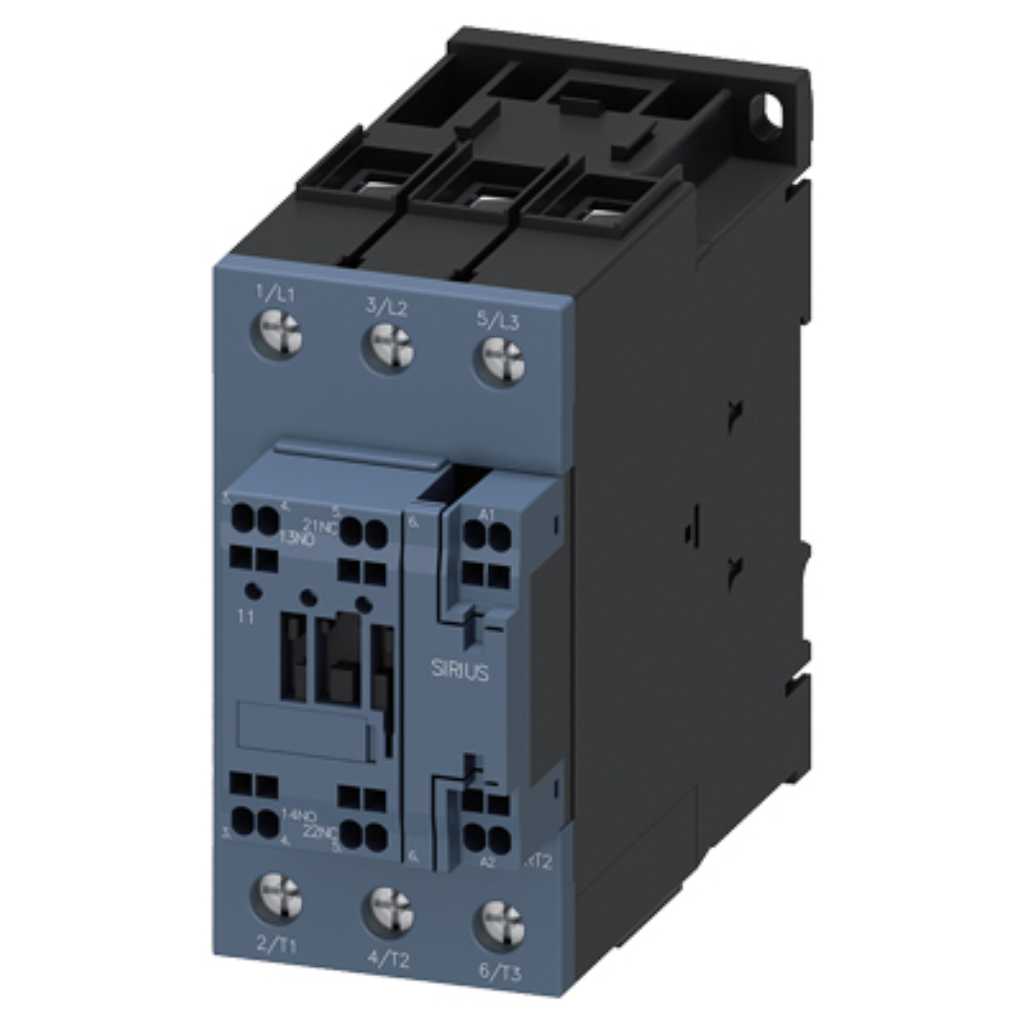

Contactor, 51A, 22kW, 20-33V AC, tam. S2, resorte

Name: Contactor, 51A, 22kW, 20-33V AC, tam. S2, resorte
Brand: Siemens S.A
SKU: 3RT2036-3NB30-0CC0
Price: 231.27 EUR
Availability: InStock

DescripciónEspecificacionesDescargasGarantías

Contactor de potencia, AC-3e/AC-3, 51 A, 22 kW/400 V, tripolar, 20-33 V AC/DC, 50/60 Hz, con varistor integrado, contactos auxiliares: 1 NA + 1 NC, circuito principal: borne de tornillo, circuito de control y auxiliar: borne de resorte, tamaño: S2, con conectividad

Protección y seguridad

device type according to ISO 13849-1	3
overdimensioning according to ISO 13849-2 necessary	Yes
safety device type according to IEC 61508-2	Type A

Conexión y cableado

size of contactor	S2
of contactor typical	10 000 000
of the contactor with added electronically optimized	5 000 000
of the contactor with added auxiliary switch block typical	10 000 000
at contactor for auxiliary contacts	Spring-type terminals
for AWG cables for main contacts	2x (18 ... 2), 1x (18 ... 1)
for AWG cables for auxiliary contacts	2x (20 ... 14)
AWG number as coded connectable conductor cross	18 ... 1

Condiciones ambientales

installation altitude at height above sea level maximum	2 000 m
at AC-1 at 400 V at ambient temperature 40 °C rated	70 A
up to 690 V at ambient temperature 40 °C rated	70 A
up to 690 V at ambient temperature 60 °C rated	60 A

Prestaciones y durabilidad

B10 value with high demand rate according to SN 31920	1 000 000

Otras características

product brand name	SIRIUS
product type designation	3RT2
function module for communication	Yes
auxiliary switch	Yes
at AC in hot operating state	12 W
at AC in hot operating state per pole	4W
without load current share typical	1W
type of calculation of power loss current-dependent	quadratic
of main circuit with degree of pollution 3 rated value	690 V
of main circuit rated value	6 kV
of auxiliary circuit rated value	6 kV
at AC	7.7 g / 5 ms, 4.5 g / 10 ms
at DC	7.7 g / 5 ms, 4.5 g / 10 ms
Net Weight	1.115 kg
during operation	-25 ... +60 °C
during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30	95 %
number of poles for main current circuit	3
number of NO contacts for main contacts	3
number of NC contacts for main contacts	0
at AC-3 rated value maximum	690 V
at AC-3e rated value maximum	690 V
at 400 V rated value	51 A
at 500 V rated value	51 A
at 690 V rated value	24 A
at AC-4 at 400 V rated value	41 A
at AC-5a up to 690 V rated value	61.6 A
at AC-5b up to 400 V rated value	41.5 A
up to 230 V for current peak value n=20 rated value	43.2 A
up to 400 V for current peak value n=20 rated value	43.2 A
up to 500 V for current peak value n=20 rated value	43.2 A
up to 690 V for current peak value n=20 rated value	24 A
up to 230 V for current peak value n=30 rated value	28.8 A
up to 400 V for current peak value n=30 rated value	28.8 A
up to 500 V for current peak value n=30 rated value	28.8 A
up to 690 V for current peak value n=30 rated value	24 A
at 24 V rated value	55 A
at 60 V rated value	23 A
at 110 V rated value	4.5 A
at 220 V rated value	1A
at 440 V rated value	0.4 A
at 600 V rated value	0.25 A
at AC-2 at 400 V rated value	22 kW
at 230 V rated value	15 kW
limited to 1 s switching at zero current maximum	937 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum	697 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum	468 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum	282 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum	229 A; Use minimum cross-section acc. to AC-1 rated value
at AC-1 maximum	1 000 1/h
at AC-2 maximum	600 1/h
at AC-3 maximum	800 1/h
maximum	800 1/h
at AC-4 maximum	250 1/h
type of voltage of the control supply voltage	AC/DC
at 50 Hz rated value	20 ... 33 V
at 60 Hz rated value	20 ... 33 V
control supply voltage at DC rated value	20 ... 33 V
initial value	0.8
full-scale value	1.1
at 50 Hz	0.8 ... 1.1
at 60 Hz	0.8 ... 1.1
design of the surge suppressor	with varistor
inrush current peak	3A
duration of inrush current peak	50 µs
pickup current mean value	1A
pickup current peak	2.6 A
duration of pickup current	230 ms
holding current mean value	40 mA
at minimum rated control supply voltage at DC	2 VA
at maximum rated control supply voltage at DC	2 VA
closing power of magnet coil at DC	23 W
holding power of magnet coil at DC	1W
arcing time	10 ... 20 ms
control version of the switch operating mechanism	Standard A1 - A2, optionally via function module
operational current at AC-12 maximum	10 A
at 48 V rated value	6A
at 125 V rated value	2A
contact reliability of auxiliary contacts	1 faulty switching per 100 million (17 V, 1 mA)
at 480 V rated value	52 A
at 110/120 V rated value	3 hp
at 200/208 V rated value	15 hp
at 220/230 V rated value	15 hp
at 460/480 V rated value	40 hp
at 575/600 V rated value	50 hp
contact rating of auxiliary contacts according to UL	A600 / P600
fastening method side-by-side mounting	Yes
height	114 mm
width	55 mm
depth	130 mm
forwards	10 mm
upwards	10 mm
downwards	10 mm
at the side	0 mm
for main current circuit	screw-type terminals
for auxiliary and control circuit	spring-loaded terminals
of magnet coil	Spring-type terminals
solid or stranded	2x (1 ... 35 mm²), 1x (1 ... 50 mm²)
finely stranded with core end processing	2x (1 ... 25 mm²), 1x (1 ... 35 mm²)
finely stranded without core end processing	0.5 ... 2.5 mm²
mirror contact according to IEC 60947-4-1	Yes
suitable for safety function	Yes
suitability for use safety-related switching OFF	Yes
service life maximum	20 a
test wear-related service life necessary	Yes
with low demand rate according to SN 31920	40 %
with high demand rate according to SN 31920	73 %
failure rate [FIT] with low demand rate according to SN	100 FIT
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
ates/Test Report	ate
3/L2	5/L3
13 NO	21 NC
14 NO	22 NC
last modified:	4/4/2026
