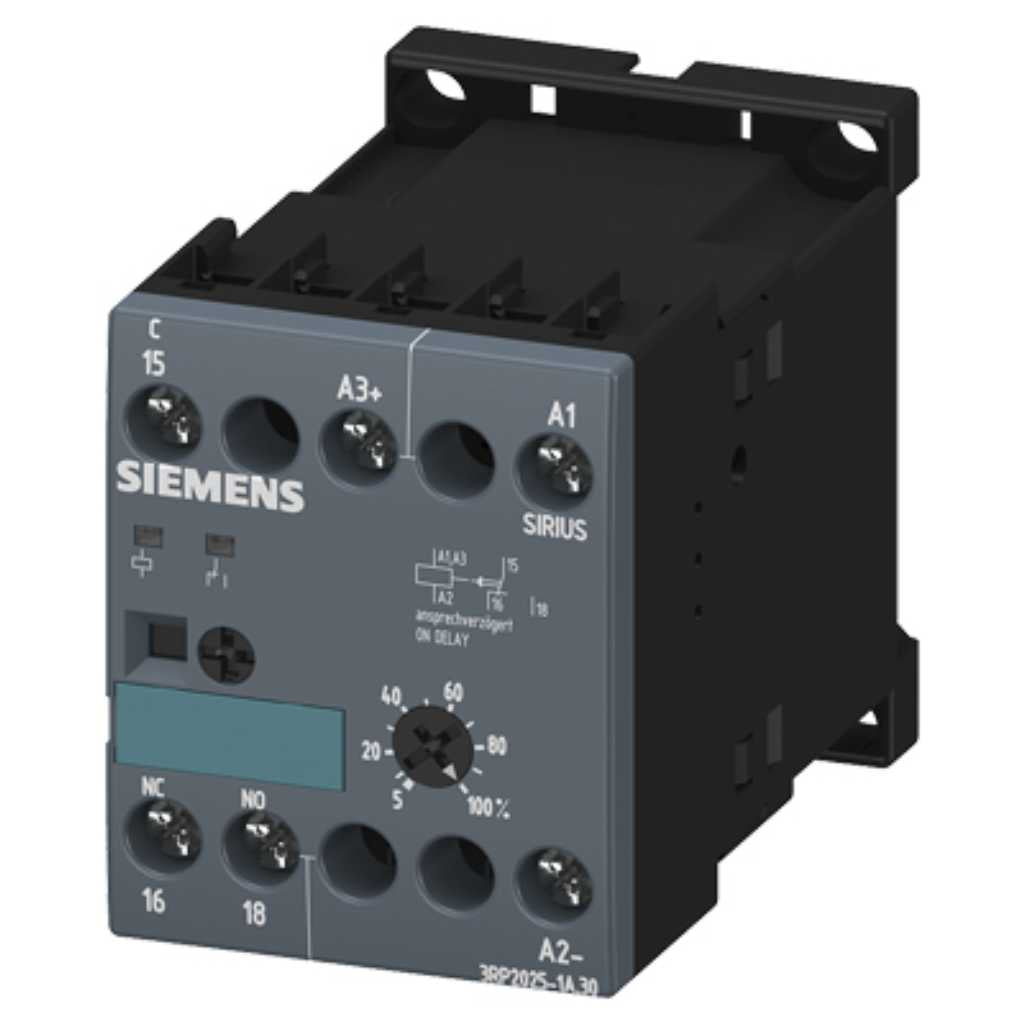

Relé temporizador, 3RP, retardo excitación, 1CO, 24V AC/DC, tornillo

Name: Relé temporizador, 3RP, retardo excitación, 1CO, 24V AC/DC, tornillo
Brand: Siemens S.A
SKU: 3RP2025-1AQ30
Price: 50.48 EUR
Availability: InStock

DescripciónEspecificacionesDescargasStock

Relé temporizador, electrónico retardado a la excitación 1 conmutado AC/DC 24 V, AC 200 a 127 V con AC 50/60 Hz 0,05 s hasta 100 h 45 mm de ancho borne de tornillo

Conexión y cableado

operating frequency with 3RT2 contactor maximum	5 000 1/h
for AWG cables solid	2x (18 ... 14)
for AWG cables stranded	2x (18 ... 14)

Montaje y material

material of switching contacts	AgSnO2

Condiciones ambientales

installation altitude at height above sea level maximum	2 000 m

Otras características

product brand name	SIRIUS
design of the product	slow-operating
product type designation	3RP20
relay output	Yes
power loss [W] maximum	2W
test voltage for isolation test	2 kV
degree of pollution	3
surge voltage resistance rated value	4 000 V
shock resistance according to IEC 60068-2-27	11 g / 15 ms
vibration resistance according to IEC 60068-2-6	10 ... 55 Hz / 0.35 mm
mechanical service life (operating cycles) typical	10 000 000
adjustable time	0.05 s ... 100 h
relative setting accuracy relating to full-scale value	5 %; +/-
thermal current	5A
recovery time	150 ms
relative repeat accuracy	1 %; +/-
influence of the surrounding temperature	±5 %
power supply influence	±1 %
Net Weight	0.11 g
type of voltage of the control supply voltage	AC/DC
at 50 Hz rated value	24 V
at 60 Hz rated value	24 V
at 50 Hz	100 ... 127 V
at 60 Hz	100 ... 127 V
control supply voltage frequency 1	50 ... 60 Hz
control supply voltage at DC rated value	24 V
control supply voltage 1 at DC rated value	24 V
initial value	0.85
full-scale value	1.1
ON-delay	Yes
delayed switching	0
instantaneous contact	0
at 24 V	3A
at 250 V	3A
at 125 V	0.2 A
contact rating of auxiliary contacts according to UL	R300 / B300
EMC emitted interference according to IEC 61812-1	EN 61000-6-4(3)
EMC immunity according to IEC 61812-1	EN 61000-6-2
due to burst according to IEC 61000-4-4	2 kV network connection / 1 kV control connection
due to conductor-earth surge according to IEC 61000-4-5	2 kV
due to conductor-conductor surge according to IEC	1 kV
field-based interference according to IEC 61000-4-3	10 V/m
electrostatic discharge according to IEC 61000-4-2	4 kV contact discharge / 8 kV air discharge
category according to EN 954-1	none
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front
type of insulation	Basic insulation
for auxiliary and control circuit	screw-type terminals
solid	2x (0,5 ...1,5 mm²), 2x (0,75 ... 2,5 mm²)
finely stranded with core end processing	2x (0,5 ...1,5 mm²), 2x (0,75 ... 2,5 mm²)
stranded	18 ... 14
tightening torque	0.8 ... 1.2 N·m
design of the thread of the connection screw	M3
mounting position	any
fastening method	screw and snap-on mounting onto 35 mm DIN rail
height	57 mm
width	45 mm
depth	73 mm
forwards	0 mm
backwards	0 mm
upwards	0 mm
downwards	0 mm
at the side	0 mm
during operation	-25 ... +60 °C
during storage	-40 ... +85 °C
during transport	-40 ... +85 °C
relative humidity during operation	10 ... 95 %
last modified:	5/29/2026

Ficha técnica oficial del fabricante con todas las especificaciones.

Ficha técnica PDF
